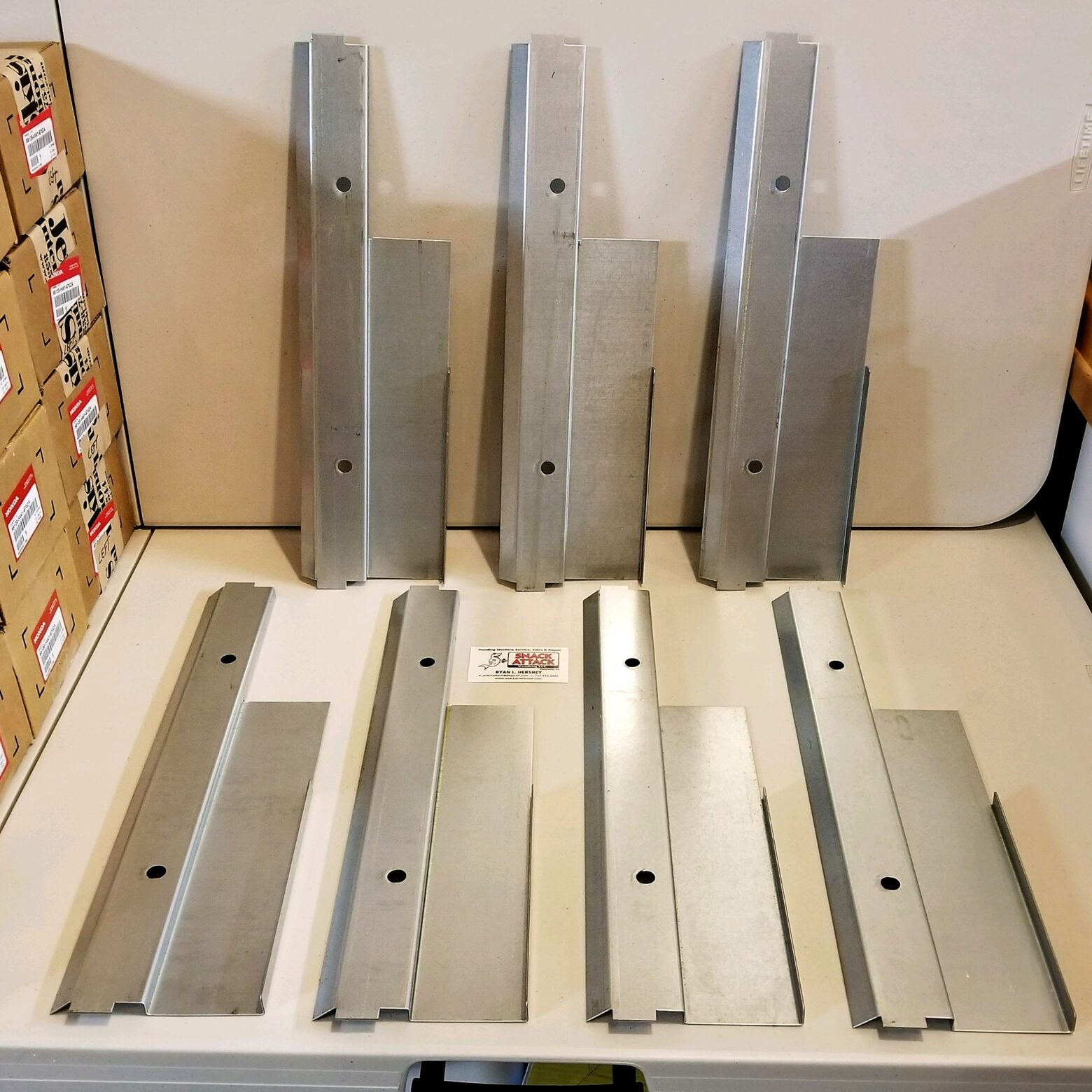

Dixie Narco 276E Single Column “CAN” Shim Kit. This is for the Dixie Narco drink vending machine models 276E & 276HVV. The kit consists of (7) single column metal shims. No Rotor Rods are needed or included. This Can Shim Kit is brand new from factory.
Single Column Instructions:
Power down machine before installing shims. Start by adjusting the single brown vend motor cam discs. Lightly pull disc tab towards you and turn disc clockwise to #1 hole snaps in. You should have 3 notches on disc for 3 deep cans.
Take springs off “sold out” flappers above vend motor. Power machine up and pull out white door button located between coin mech & bill validator. This will reset vend motor cams. Now vend each single column brown vend motor so that the rotor cup is in the right, 3:00 o’clock position. This will allow you an inch gap to take out metal ” bottle” shims and replace with “can” shims. The metal can shim rests on a metal rod front of machine and rear.
Put a 12 pack of can soda in each column and test vend. 1st couple of vends cans will not drop.
